B6AC 80W is a dual intelligent electrical charge and discharge, fast charge / discharge of the high-tech and professional control software with built-in high-performance microprocessor appliances, temperature detector, built-in adapter.
Item:Upgraded B6AC Multi Functional Balance Charger
AC Input Voltage:100~240V
DC Input voltage: 11.0 ~18.0 volts.
Circuit voltage: alternating current to direct current (DC 11.0 to 18.0V/5A)
Maximum charging electric power 80W
Maximum discharge power 10W
Charge current range: 0.1 to 6.0 A
Discharge current: 0.1 ~ 2.0A
Rechargeable Li-Po balancing current: 300mAh/cell
Rechargeable NiCd / NiMH: 1 ~ 15cells
Rechargeable lithium battery: 1 ~ 6 series
Pb voltage: 2V ~ 20V
1, Optimized operating software When charging or discharging, B6AC80W will automatically control the feeding current. Especially for lithium batteries, it can prevent the overcharging or even cause an explosion due to user mistakes. Automatically disconnect the circuit or connection error and to provide the necessary alarm. All of the procedures in this product to control rely on two-way connection and communication, to achieve the safest state, is generally not a problem. All settings can be achieved by setting the software to!
2 , Built-in independent lithium battery balancer . B6AC + built-in a monolithic battery voltage balancer, rechargeable lithium no longer need to connect an external balancer for balance charging.
3, Single block cell balancing discharge B6AC + can also be a separate monitor and balance each cell in the Lithium battery pack during the discharge process, which battery voltage is not normal, the error message will be prompted to abort the operation and automatically!
4 , Can be applied to a variety of lithium batteries.BC6 can be applied to a variety of lithium batteries, such as Lilo, LiPo and LiFe latest series of batteries. You can choose any of them because of the different chemical properties.
5,"Quick charge" and "storage" mode of lithium battery lithium battery charging different purposes, "fast" charging can reduce the charging time, the "Save" mode is able to control the termination voltage of the battery, so that it can be stored for a long time, and to protect the the battery life.
6, Maximum security triangle drop induction:
An automatic charge current to close the program, its working principle is the triangular voltage drop: the battery voltage rises to the highest point and began to back down, the charging current is turned off until the completion of charging.
7, Automatic charging current limit:
When the NiCd or NiMH charging in the automatic mode, you can set the upper limit of the charging current, low resistance and small-capacity Ni-MH battery charging in the automatic mode is useful.
8, Capacity constraints:
Charging capacity to the charging current multiplied by the charging time calculated. In the case of setting the highest charge value, when the charging capacity exceeds the maximum limit, the program will automatically stop charging.
9, Temperature limits:
When charging, the battery due to internal chemical reaction, the temperature will increase accordingly. If the charger set temperature limit, reaching their maximum temperature, the program will force the end-of-charge. This feature requires an external temperature sensor.
10 ,Charging time limit:
Limit the charging time can be prevented due to operational errors caused by damage to the battery.
11, Input current monitor:
For the protection of the vehicle used as the AC input battery current input from being damaged, its voltage has been monitoring. When the voltage drops to the lower limit, the charging process will automatically shut down.
12, Most humane model professional charger specially for mulated proprietary model receiver charging jack, the transmitter charging jack, ignition power charging jack, there is a wildcard alligator clips and some model commonly used charging jack.
(With charging chart)
13, Most convenient lithium battery balance dedicated jack with separate 2, 3, 4, 5, 6 charging jack, as well as the external reverse cable (with charging jack diagram and the correct wiring diagram)
14, Data save / load for the convenience of the user, this product can store up to five different battery data. You can save the battery charge / discharge program data, these data can be called when you need to be able to achieve the program do not need a separate set this step!
15, Cycle charge / discharge can be repeated 1-5 times a continuous cycle charge / discharge or discharge / charge. To maximize the activity of the battery is activated.

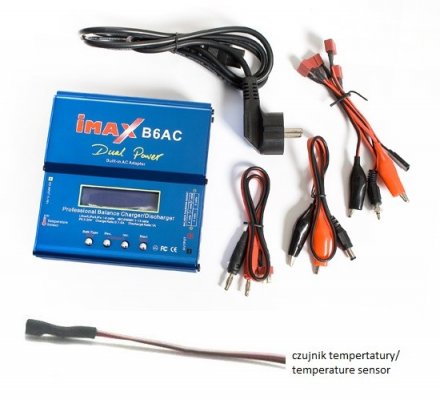

1 x B6AC balance charger
