KST X15-1208 V8.0 13.5kg.cm 8.4V

KST X15-1208 V8.0 13.5kg.cm 8.4V

KST X15-1208 Mini Size Digital Servo is a great choice for helicopters ranging from 430mm-570mm rotor blade size requiring mini servos such as the Align T-Rex 500 Mikado Logo 480 MSH Protos 500 and SAB Goblin 570. Additionally these servos can be used in other RC applications where the physical dimensions and torque/speed ratings suit the need of the RC application.

Features

• Hardened Steel Gears
• Extreme Torque and Excellent Speed
• CNC Aluminium Case
• Two Ball Bearings

Specification

• Operating Voltage: 6-8.4V

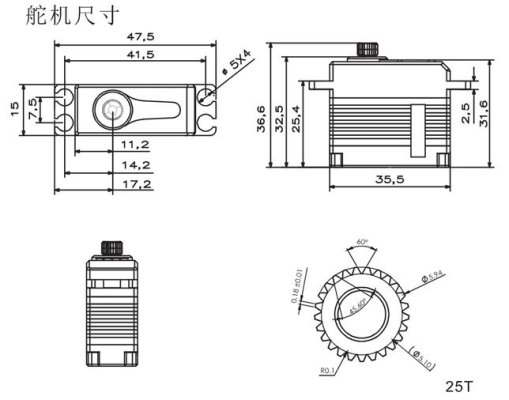

• Size: 35.5*15*32.5mm
• Torque: 9.8Kg.cm@6.0V 12Kg.cm@7.4V  13.5Kg.cm@8.4V
• Speed: 0.10sec/60@6.0V  0.08sec/60 @7.4V  0.07sec/60@8.4V
• Weight: 40g
• Working Frequency: 1520us/333Hz 800us - 2200us
• Motor: Coreless
• Ball Bearing: 2BB
• Output Gear: 25T Futaba
