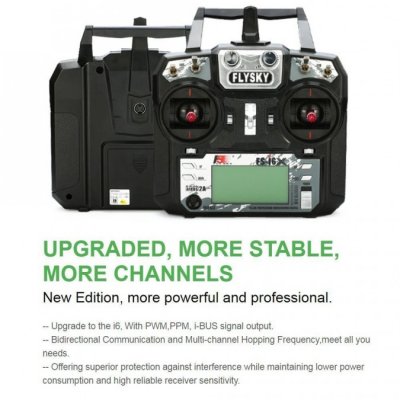

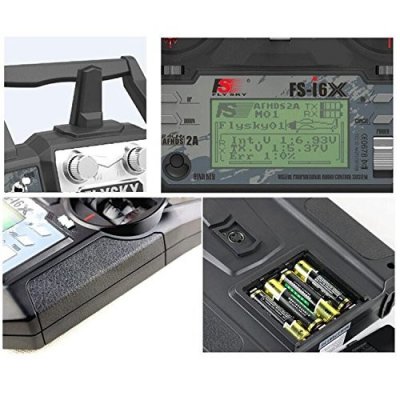

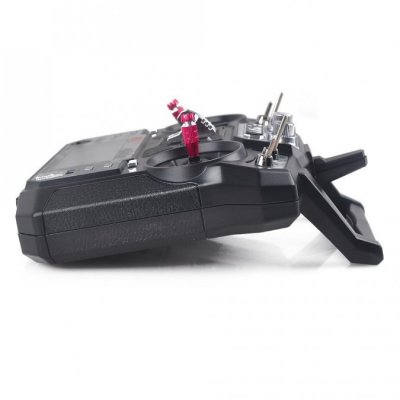

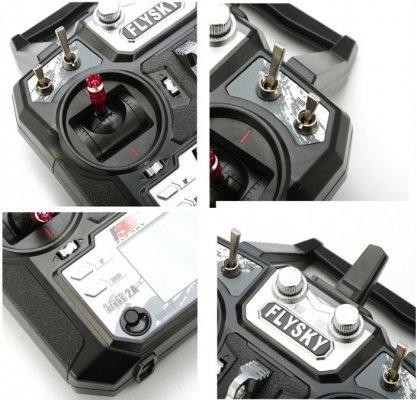

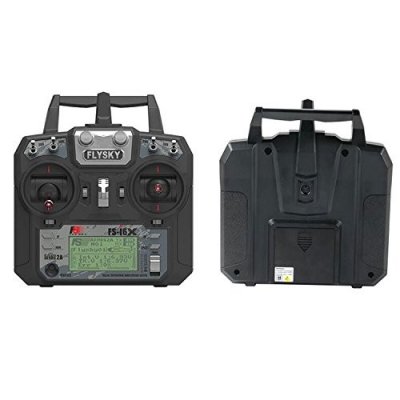

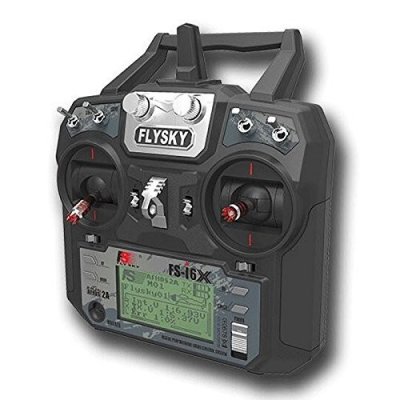

FlySky FS-i6X 10CH 2.4GHz +receiver FS-X6B AFHDS 2A i-Bus

FlySky FS-i6X 10CH 2.4GHz +receiver FS-X6B AFHDS 2A i-Bus
  • Κωδικός/Model: FS-i6X-X6B
  • Βάρος Μεταφοράς: 3Kgr
  • Διαθεσιμότητα stock level
  • Κατασκευάζεται από: FlySky

80.00€

FlySky FS-i6X 10CH 2.4GHz +receiver FS-X6B AFHDS 2A i-Bus

Features:

  • 10 channel 2.4GHz radio with telemetry capability
  • Automatic Frequency Hopping Digital System (AFHDS) spread spectrum technology
  • Transmitters comes pre-bound to receiver
  • Multiple control switches including a 3-pos switch and two potentiometers
  • Easy to use and program
  • 20 model memory
  • Trainer port
  • Backlit LCD screen displays real time transmitter and receiver voltage

Basic Programming Functions:

  • Dual Rates
  • Sub Trim
  • Travel Adjust
  • Channel Reverse
  • Swash Mix
  • Gyro Sensitivity
  • Throttle Curve
  • Monitor
  • Pitch Curve
  • Throttle Hold
  • Model Name
  • Timer

FS-i6X Specifications:

  • Channels: 6-10 (Default 6)
  • Model type: Fixed-Wing/Glider/Helicopter
  • Model Memories: 20
  • RF range: 2.408-2.475GHz
  • Bandwidth: 500KHz
  • Band: 135
  • RF power: less than 20 dBm
  • 2.4G system: AFHDS 2A and AFHDS
  • Code type: GFSK
  • Sensitivity: 1024
  • Display: 128*64 dot matrix with white backlight.
  • Low voltage warning: Yes (less than 4.2V)
  • DSC port: Yes (PS2; output: PPM)
  • Charger Port: No
  • Power: 6V DC (1.5AAx4 - not included)
  • Weight: 392g
  • ANT length: 26mm (dual antenna)
  • Size: 174x89x190mm
  • Certificate: CE0678, FCC
  • Mode 2 (Left Hand Throttle)

FS-X6B​ Specifications:

  • Channels: S.Bus 18 Channels, PPM 8 Channels, PWM 6 Channels
  • RF range: 2.4055 ~ 2.475 GHz
  • RF channel: 140
  • RX sensitivity: -105dBm
  • 2.4GHz system: AFHDS 2A
  • Modulation type: GFSK
  • Power input: 4.5V - 6.5 V DC
  • Antenna length: 100mm x 2
  • Size: 36 x 22 x 8 mm
  • Weight: 5g
  • Certificate: CE0678, FCC, RCM
  • i-Bus port: Yes
  • Data acquisition port: Yes
  • PPM Common port: Yes
  • Independent Port: Yes

Included:

  • 1 x FlySky FS-i6X 10CH Transmitter
  • 1x Firmware Upgrade Cable
  • 1 x FlySky FS-X6B 6-Channel Receiver
  • 1 x CD-Rom (Manual PDF file in this CD-Rom)
