LOGO 550 SE V2 Super Combo, gelb/blau/schwarz

LOGO 550 SE V2 Super Combo, gelb/blau/schwarz
  • Κωδικός/Model: MKD-05487
  • Βάρος Μεταφοράς: 8Kgr
  • Διαθεσιμότητα stock level
  • Κατασκευάζεται από: Mikado

999.00€Καλέστε για Πληροφορίες

LOGO 550 SE V2 Super Combo, gelb/blau/schwarz

LOGO 550 SE is the next step in the LOGO 500 Series. The LOGO 550 SE keeps all the proven and popular components of the LOGO 500, while incorporating several new developments to sustain today’s technical requirements during extreme flight manoeuvers.
Underneath the freshly designed canopy you find an improved version of our tried and tested chassis, which now offers a battery quick release system and considerably more headroom for flight packs below the counter bearing. The chassis will of course be available as upgrade kits for all existing 500 SE and 550 SE size LOGO helicopters.

- 600 mm main blades
- 6 S Lipo mit 4500-5000 mAh, a luminum rotor head yoke with 8mm spindle shaft
- light und durable chassis fiberglass reinforced frame with battery quick release system
- direct servo link to the swashplate
- Hollow main shaft with 10mm diameter
- Herringbone main gear with 153 teeth (module 0.7)
- Motor counterbearing with additional main shaft support
- colored fin set in neon red, matched with the canopy

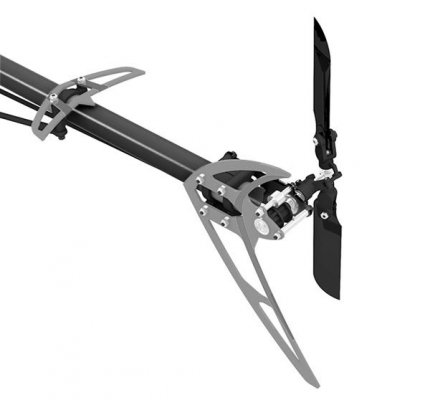

- Extra-strong 22 mm diameter tail boom
- Detailed airbrush canopy in neon yellow

Specifications Helicopter
Rotor diameter 1340 mm
Rotor blades 600 mm
RTF weight 3,20 kg
recommended batterie 6S Lipo 5,000 mAh
Main gear ratio 8.1-12.75
Main Gear size 153 teeth modul 07
batterie slot 60 x 54 x 600 mm
Length 1140 mm
Hight 360 mm
Width 210 mm
Kit Kit Combo with motor and blades
Accessories Counterbearing with mainshaft support
Manual Detailed printed manual
Motors Scorpion HK III 4025-1100 kV, Mikado Edition with 25/30 mm motor mounting
Motor pinion 13 teeth modul 07
VBar electronic VStabi NEO Expres VLink
Servos 3 x Savox 1257, 1 x Savox 1290
Blades CFK 610 mm
Tail Blades CFK 95 mm
Canopy Airbrush Haube
