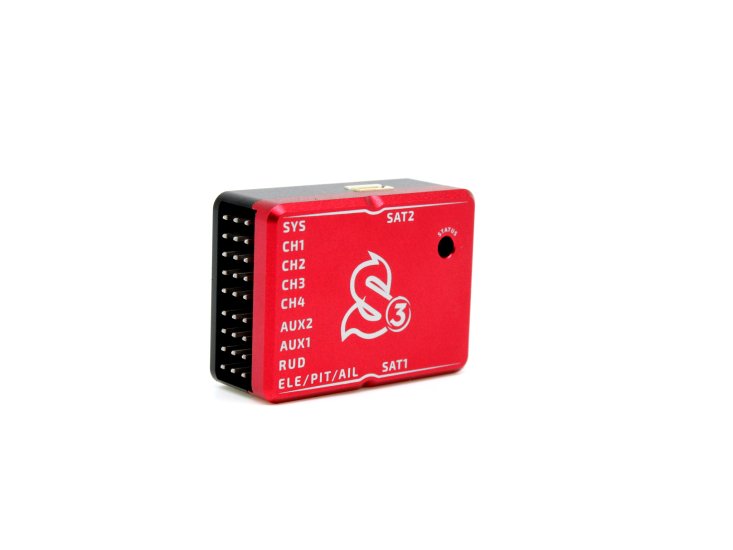

Spirit 3 - Evolution of Spirit. Universal flybarless and stabilisation unit for all models.
Outstanding ARM M7 processor
M7 performance-line processor is truly unbelievable! It is 3x faster than M4 and brings amazing features.
This adds free room for any possible math operation allowing to calculate anything imaginable the unit could ever need.
It packs native telemetry support for Futaba S.BUS2 FrSky S.PORT F.Port and F.BUS including ELRS protocols. Without any special cables.
Real-Time Logging capability
Logging of everything - that is now possible for the first time! Until now logging at 500Hz rate was barely possible. That is not an issue anymore. Thanks to durable Dedicated Memory Chip with long-life!
You can see how your model was flying in the air! In 3D graphics.
Pressure Sensor
Yes it is there and fully embedded. Unparalleled precision of 1 Pascal allow extremely precise altitude measurement . With the innovative algorithms and Sensor Fusion technology the precision goes further down. It can be utilized in a various of ways such as Altitude Hold or even Automatic Rescue system.
Industry-leading Motion Sensor
Motion Sensor with 20 bit precision was unimaginable few months ago. Everybody can taste it yourself now.
Superb stability through temperature gradient and Vibration immunity few times better than in any other unit. Antialiasing feature and Spirit algorithms makes the Rescue function Top of the line.
Redundant PowerTrain
With Spirit 2 we have developed separated power supplies for the unit itself and peripherals. Now with Spirit 3 design was enhanced to minimize voltage drops even for a peripherals!
Simplified Wiring
Our aim is simplicity. This mean you no longer need a special cables such as FrSky Integration cable or even JETI Integration cable. It can be replaced just with normal stright one. Same as for Spirit GT.
Gold-plated PCB
We care about reliability a lot. For big scale helicopters of 800 class or more extreme current amperage can develop. With Spirit 3 connectors all losses are minimized.
Extensions
Spirit 3 can be extended for basically unlimited servo outputs. If you will ever need to control 8 servos or more with Spirit 3 it will be possible in very near future.
Servos with telemetry feature will be supported in the upcoming update too.
For Helicopters and Fixed Wings
Spirit 3 was designed for 250 – 800 class helicopters and medium size fixed wing models. It is perfect match for the most available R/C models.
Hardware
- Very rigid CNC milled anodized and sandblasted enclosure
- Color: Red and Black matt
- Material: High quality AL6061-T6
- Dimension: 36.8x27.15x13.9mm weight: 18g
- Power supply: 2 - 15V @ 50mA
- Operating temperature: -10°C to 60°C
- Latest generation Ultra Fast ARM processor: 462 DMIPS
- IMU MEMS sensor with 20bit precision
(rotation to 2000°/s !) - Gold plated PCB with Pb-Free soldering
- Laser Engraved labels for perfect visibility.
- Integrated S-BUS Inverter
- Integrated FrSky Integration cable
- Setup directly from radio with common brands
- 2x native Spektrum connectors
- 3x connector for power supply 4x for servos
- Revolutionary GeoLink support (GPS vario logger)
- Spirit Aero support (coming soon)
- All-pin protection
- Redundant internal powertrain for maximum safety
- Excessive tolerance for brown-outs
- Dedicated capacitor for peripheral voltage stability
- Simplified JETI receiver wiring
- Embedded Pressure sensor
- Dedicated Memory Chip for Real-Time logging
- Samtec Pin headers for high current transmission
Features
- Super-smooth flight control
- Paddle simulation with inexpressible feeling
- Classic flybar mechanics support
- Extreme vibration immunity for all helicopter types
- Spectrum analysis for model diagnostics
- Flight log with recorded events
- Easy configuration with setup wizard
- Smartphone or tablet support via Bluetooth and WiFi
(Modules are sold separately) - Spektrum Jeti OpenTX and HoTT radio integration
- Available for Windows OSX Linux Android iOS
WP SailfishOS FreeBSD Raspberry Pi and more - Stabilisation for scale pilots and beginners
- Reliable full-featured rescue system
- Integrated Bank Switching
- Support for ESC Telemetry - HobbyWing Kontronik
Castle YGE Scorpion OMP Hobby XDFly Graupner - Governor for Electric Nitro and Gasser Helicopters
- BEC tester with load verification
- Support for PWM PPM S-BUS FrSky F.Port
Spektrum DSM2/DSMX JETI Duplex EX Bus
SRXL/Graupner SUMD/JETI UDI/JR X-Bus
F.BUS CRSF ELRS Spirit RX receivers - Support for all servo types:
1520/960/760us @ 50 - 700Hz - Support for CCPM 90/120/135/140°
- Real-Time telemetry log
- Perfect flight log with 3D visualisation
- Servo extension board for 8 servos and more
Package content
- Spirit 3 unit
- USB interface
- 15cm receiver cables
- 10cm 3M VHB doublesided adhesive tape
Warranty
- 2 year warranty for the original purchaser
- 50% discount for damage replacement of the unit
