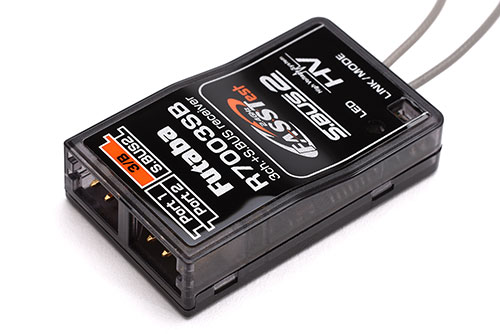

Futaba R7003SB Receiver - 3/18-Channel S-Bus (HV) 2.4GHz FASSTest

The R7003SB was primarily developed for models using Futaba S.Bus system such as helicopters/drones but it equally suitable for fixed wing models using this system, or other models using only 3 channels. This tiny full range FASSTest receiver weighs in at only 7.2g and has a moulded plastic case for added durability. The S.Bus system allows for a simpler setup on complex/perfiormance models and has full support for S-Bus and S-Bus2 servos. The R7008SB is high voltage capable, meaning it can take power from sources such as 2S li-po batteries (3.7 - 7.4V supply).

As supplied the R7003SB receiver includes integral sensors for receiver voltage, signal strength and external voltage, with further separate sensors available seperatly.

• FASSTest (18ch & 12ch)
• Telemetry with built-in voltage sensor
• EXT-VOL external voltage sensor included (0.70V)
• PWM allows 3 channels
• S.BUS allows 18 channels
• Small and lightweight
• Moulded plastic case
• Dual antenna diversity (coaxial antenna)
• Full range operation




Specification
Fail Safe:Battery F/S voltage is set by the Tx
Modulation:FASSTest (18ch & 12ch)
S.BUS:S.BUS & S.BUS2
Telemetry:Yes (EXT-VOL sensor included)
Weight:7.2g (0.25oz)
Channels:3 PWM (18 using S-Bus)
Dimensions:37.4 x 22.5 x 9.3mm (0.89 x 1.47 x 0.37")
Voltage:3.7 - 7.4v (3.7 - 8.4V Range)
Aerial Length:140mm (20mm Tips)

  • Model: P-R7003SB
  • Βάρος Μεταφοράς: 0.1 Kg
  • Κατασκευαστής: Futaba
  • Διαθεσιμότητα stock level
Κάντε μια Ερώτηση

98.00€
