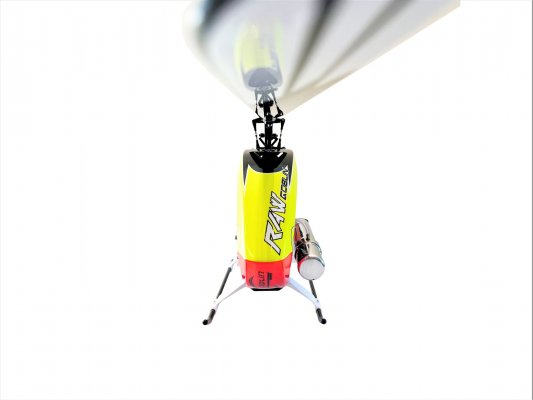

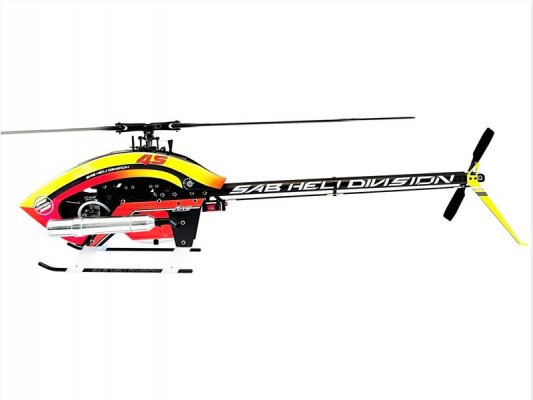

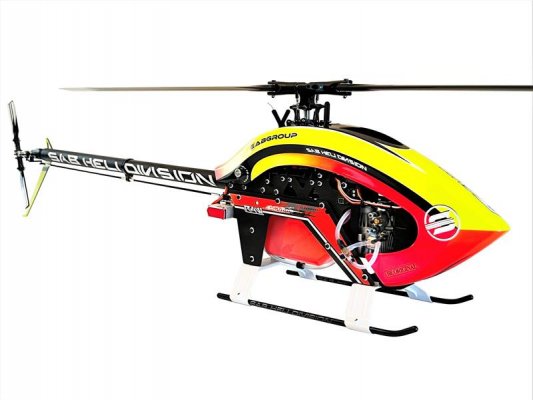

SAB Goblin RAW 580 Nitro
Technical Specifications:
- RTF Approx. Weight: 3080 grams (no fuel)
- Main blade length: 550mm to 600mm (580 mm included)
- Tail blade length: 95 to 105 mm (95mm included)
- Cyclic Servos: Mini size 35 mm (Standard size 40mm option)
- Tail Servo: Standard size 40mm
- Main Rotor Ratio: 8.6 to 7.4 :1 (26T included: 8:1)
- Tail Rotor Ratio: 5.3-4.9:1 (23T included: 4.9:1)
- Engine: .50 to .60 Nitro Heli Engine
- Tank size: 440ml
- RX battery size: 2S -1800 mAh
Helicopter Main Data
| Configuration | 580/600 |
|---|
| Available P/N | SG584 |
|---|
| Main rotor diameter | 1296mm with 580mm Main Blades |
|---|
| Main blade length | 550mm to 600mm |
|---|
| Tail rotor diameter | 260mm with 95mm Tail Blades |
|---|
| Tail blade length | 95mm to 105mm |
|---|
| Main shaft diameter | 10mm |
|---|
| Tail shaft diameter | 5mm |
|---|
| Weight | 3080 g (no fuel) |
|---|
Helicopters Secondary Data
| Cyclic Servos | Mini Size 36mm |
|---|
| Tail Servo | Standard size 40mm |
|---|
| Typical speed controller | |
|---|
| Maximum motor size | |
|---|
| Motor KV | |
|---|
| Battery compartment | |
|---|
| Battery capacity | 2S 1800 |
|---|
| Available ratios | 8.6 to 7.4 :1 |
|---|
