SAB Goblin URUKAY GENESIS

SAB Goblin URUKAY GENESIS



Total renewal of the 2018 World Champion model. From the experience gained with the tests of the Kraken model to the F3C 2019 championship with Ennio Graber We then added the most innovative solutions developed from the latest Goblin models.

There are many details that bring the Urukay Genesis to the top as gearbox, special main shaft, new rotor head geometry…

The new fuselage is extremely modern and effective in terms of flight line presentation, it completes the features that make the Urukay Genesis a model ready for any challenge.





  • AIRFRAME weight: 2950gr (with blades, no battery, no electronics)
  • Main blade length: 690mm to 760mm
  • Tail blade length: 105 to 115 mm
  • Main rotor diameter: 1662 mm (with new F3c 747 mm blades included)
  • Tail rotor diameter: 284 mm (with 105 mm tail blades included)
  • Cyclic Servos: standard size 40mm
  • Tail Servo: standard size 40mm
  • Main Rotor ratio: 11.8 to 8.8 (21T included: 10.1:1)
  • Tail Rotor ratio: 5.0-4.8:1 (26T included: 4.9:1)
  • Typical motor: 4525 series
  • Typical speed controller: 12S, 160-200 A
  • Battery size: 12S 4500-5500 mAh

Fuselage

The new fuselage is extremely modern and effective in terms of flight line presentation, it completes the features that make the Urukay Genesis a model ready for any challenge.







ROTOR HEAD

Ultra-light, 7075 aluminum alloy highly adjustable rotor head. The head allows for a very broad range of dampening setups. The dampers are composed of 3 O-rings (these define the rigidity) and a techno polymer damper (that defines the maximum possible movement of the spindle). Using different O-ring and dampers you can setup a different feeling of the model. The 35 mm use blade grips are optimized for F3C.



POWER TRAIN

Power train is fully enclosed in an aluminum case. Helical gears, Delrin swashplate guide, separate top bearing. We looked for the most innovative and avant-garde solutions.


CONICAL MAIN SHAFT-HUB

Conical coupling between main shaft and hub. This type of connection ensures excellent coaxially.

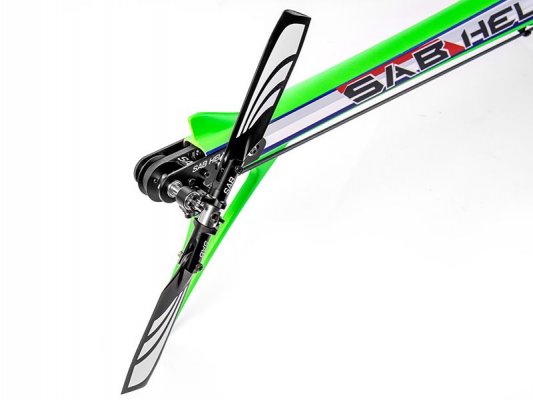

TAIL ROTOR

An ultra-light tail case with quick and easy tail fin replacement. Very simple, strong, reliable & durable. Large diameter tail drive pulleys allow for maximum efficiency in power transfer.


GEAR BOX DETAIL

Delrin swashplate guide, separate top bearing, Conical main shaft


TAIL BELT TENSIONER

Tail belt tensioner













Helicopter Main Data


Configuration 750
Available P/N SG747
Main rotor diameter 1670mm
Main blade length 747mm
Tail rotor diameter 284mm
Tail blade length 105mm
Main shaft diameter 12mm
Tail shaft diameter 6mm
Weight 2950gr (with blades, nobattery, no electronic)
Helicopters Secondary Data

Cyclic Servos Standard size 40mm
Tail Servo Standard size 40mm
Typical speed controller 130A
Maximum motor size 62 mm diameter x 70 mm height
Motor KV 500-560KV
Battery compartment 56mmx70mmx320mm
Battery capacity 12S 4200/5500 mAh
Available ratios From 8.4 to 11.8
  • Model: SG747
  • Βάρος Μεταφοράς: 9 Kg
  • Κατασκευαστής: SAB Heli Division
  • Διαθεσιμότητα : ΚΑΤΟΠΙΝ ΠΑΡΑΓΓΕΛΙΑΣ
