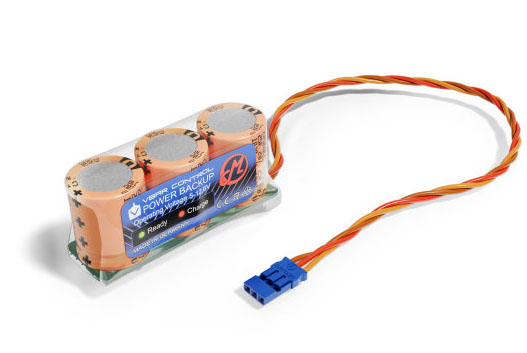

VBar Control Power Backup Mini

Benefits at a glance

• automatic activation and deactivation depending on the operational status of the model (motor switch position stick inputs)
• all voltages can be monitored separately via telemetry
• charging currents are adjustable both for initial charging and for topping-up during operation
• recharges automatically and immediately whenever needed
• companion App warns the pilot whenever the backup is used
• this unit ensures the everyday operation of your valuable models

Hardware features

• wide input voltage range from 3 V up to 12.6 V (3s LiPo) with a 16 V peak margin
• Capacity 3 x 25 F 20+ A peak current
• short circuit protection
• fast charge (adjustable) up to 2.4 A
• charging current is ramped up slowly to protect main power supply
• decoupled channels for power delivery and for charging
• VLink Telemetry monitoring and control
• no r/c channel (servo connector) must be sacrificed pass-through via main connector
• active balancer between capacitors for low idle discharge
• up to 3 units can be connected parallel tripling the capacity and power; cascaded units are fully suported by companion App
• telemetry input for other sensors or ESCs (daisy-chaining)
