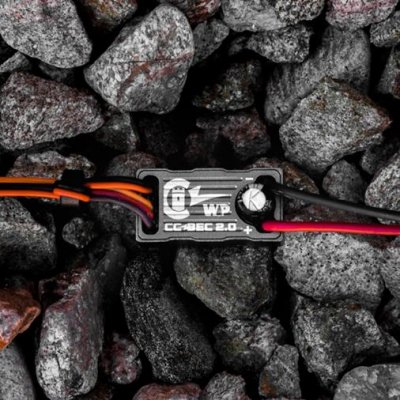

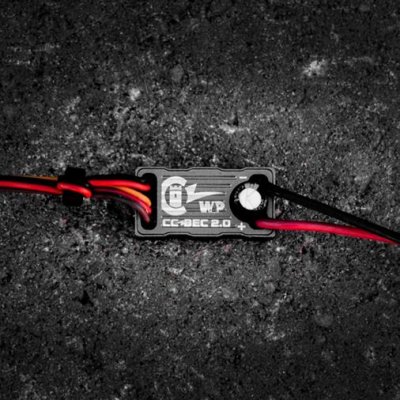

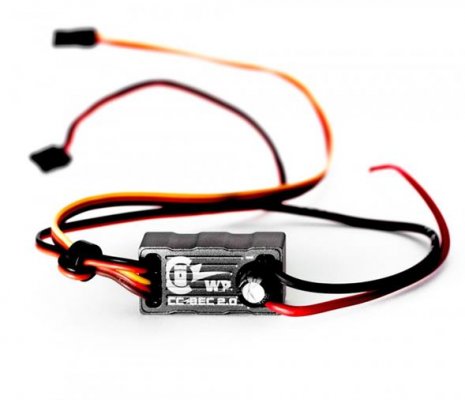

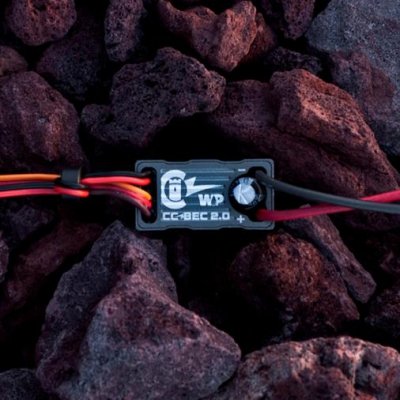

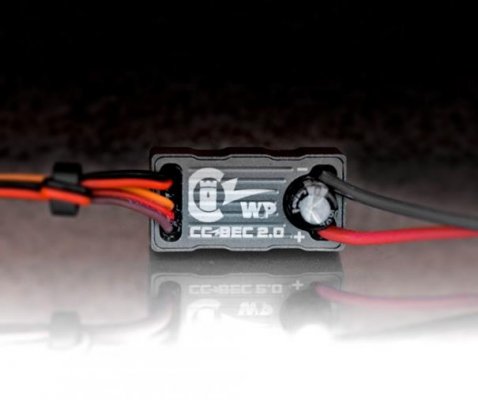

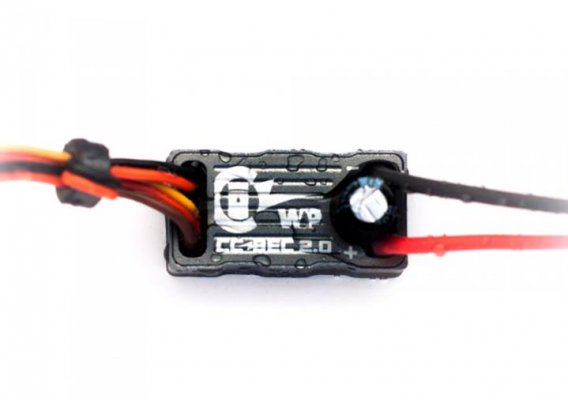

Castle creations BEC 2.0 Waterprotected (14S)
From the trusted manufacturer of BECs comes the next generation of
voltage regulators. Designed and assembled in the USA1, Castle
CreationsΆ CC BEC 2.0 gives users higher voltage ranges in two unique
packages. For pilots there is a smaller, lightweight (0.7 oz.) design
capable of 14 amps peak, perfect for sport flying, helicopters, and

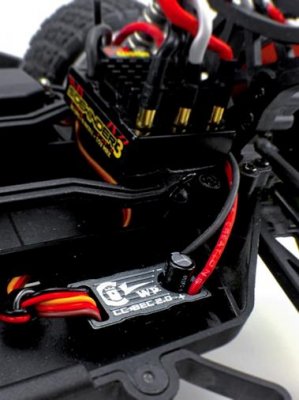

UAVs. Racers, crawlers, and other splashers can now integrate a 15 amp
peak power regulator in a waterproof (WP), CNC machined, aluminum case.
Both versions handle up to an impressive 14S without brake enabled or
12S with brake.
The CC BEC 2.0 complements our established line
of BECs hobbyists have relied on for years. With hundreds of thousands
in the field, users can count on this new design to power todayΆs
high-power, digital servos and accessories safely. The CC BEC 2.0
features heavy duty, dual output wires that will provide clean power to
sensitive radio equipment. Castle Link2 can be used to set the output
from 4.75 to 12 volts and power todayΆs power hungry servos, cameras,
and other accessories. Do it right the first time, invest in the CC BEC
2.0 to protect expensive electronics for the long haul.
Note:
CC BEC 2.0 should never be operated in series or parallel with another
BEC or backup receiver pack connected to the RX/Servo side of the
circuit.
Footnote:
1. Adjustable Output Voltage may be set with Castle Link (sold separately).
Specs:
- Common Applications: Crawlers, Marine, Sea Planes, UAS, Industrial
- Waterproof: Yes
- Peak Current: 15A (dependent upon input and output voltage)
Continuous current*:- 4.75- 6.0V output: 10A
- 6.25-8.5V output: 9A
- 8.75-10.0V output: 8A
- 10.25-12.0V output: 7A
Max volts:- Surface 12S (50.4V)
- Air (w/Brake): 12S (50.4V)
- Air (No Brake): 14S (58.8V)
- Adjustable output voltage**: 4.75 to 12V
- Default setting: 5.25V
- Size: L35 x W18 x H19 mm
- Weight***: 28g
*Ratings are determined with a 5mph airflow at 25° C.
**Adjustable Output Voltage may be set with Castle Link (sold separately).
***Weight with full length wires, power wires may be shortened to save weight depending on application.
Assembled in the USA with foreign and domestic components.
