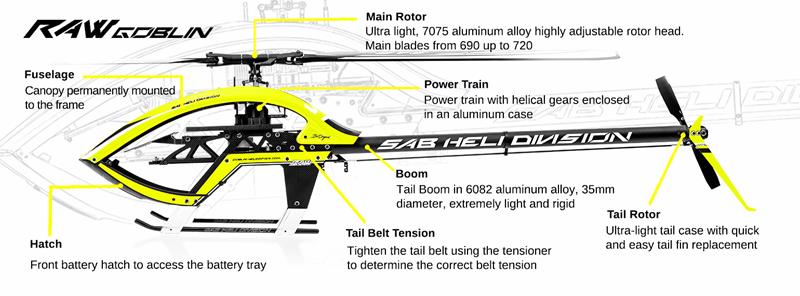

Goblin’s RAW is a model that somehow changes one of the features of the GOBLIN.

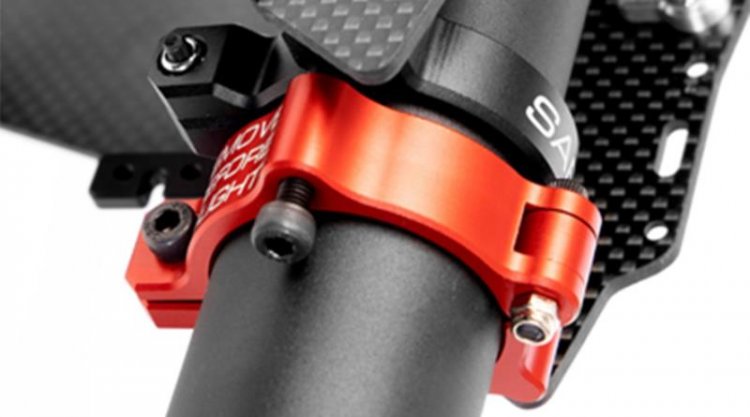

In fact, the RAW is the first Goblin model with an aluminum tail boom.
Our challenge was to try to make a model with an aluminum tube in an original and functional way.
During the design of the RAW we looked for the most innovative and avant-garde solutions. Then we worked hard on adding an Original design.
We are proud to present the new Goblin RAW
- AIRFRAME weight: 2620gr (with blades, no battery, no electronics)
- Main blade length: 650mm to 720mm
- Tail blade length: 105 to 115 mm
- Main rotor diameter: 1548 mm (with 690 mm blades included)
- Tail rotor diameter: 284 mm (with 105 mm tail blades included)
- Cyclic Servos: standard size 40mm
- Tail Servo: standard size 40mm
- Main Rotor ratio: 11.8 to 8.8 (21T included: 10.1:1)
- Tail Rotor ratio: 5.0-4.8:1 (26T included: 4.9:1)
- Typical motor: 4525 series
- Typical speed controller: 12S, 160-200 A
- Battery size: 12S 4500-5500 mAh
