1.New aerodynamically efficient low drag flybarless head assembly,with detachable blade grip pitch arm for ease of maintenance.
2.The frame utilizes 2mm carbon fiber plates of the highest spec. Patented composite material construction technique cleverly utilize frame space that improved overall rigidity, and also created a minimalistic beauty.
3.Innovative sliding battery tray rails imbedded into the 3K side frames, with patented spring loaded latching mechanism, allowing for quick battery access as well as battery protection.
4.Top mounted motor base bringing the motor’s center of gravity closer to rotating disc, improving 3D agility.
5.Brand new 600 class 12S high voltage brushless motor providing generous torque and power output, yet consumes lower average current to prolong the life of batteries.
6.The most optimal motor pinion ratio and tail gear ratio to achieve the most efficient power output and flight characteristic.
7.Heatsink embedded into motor mount for effective cooling of motor.
8.Motor mount consists of third bearing block to provide motor shaft support, effectively reduce torque induced shifts, and minimize gear striping issue.
9.Utilize direct link CCPM swashplate control system to enable direct and fast control response. Specially designed anodized CNC servo horns are not only visually pleasing, but are extremely rigid.
10.Utilizes highest spec CNC modue-1 helical main gear, with highest load tolerance and lowest noise.
11.Ergonomically designed H-shaped electronic mount to provide flexible organization or equipment, and minimize wire clutter.
12.Brand new CNC machined metal tail gear box, with thicker side plates to increase rigidity. The more streamlined design also allows for simpler disassembly.
13.High quality 5mm carbon rod and CNC metal tail scissor control arms are used in rudder control system to improve rudder lockingand control effectiveness.
14.Additional radial bearing is added to the one way bearing block to ensure smooth rotation, and eliminate jammed one way bearing.
15.Tail pitch mechanism equipped with high precision bearing.
16.High speed thrust bearings in tail blade grips.
17.New lightened landing gear assembly with lower center of gravity.
18.High quality painted fiberglass canopy with 4-point quick release mounts.
Users must have a certain concept of security to operate the R/C helicopters.
Be sure to read and comply with related safety notes of instruction manual before flying.
· Length: 1160mm
· Height: 353mm
· Width: 210mm
· Main Blade Length: 600mm
· Main Rotor Diameter: 1347mm
· Tail Rotor Diameter: 260mm
· Motor Drive Gear:13T
· Main DriveGear:112T
· Autorotation Tail DriveGear: 131T
· Tail Drive Gear: 34T
· Drive Gear Ratio: 1:8.61:3.85
· Weight(With Motor): 2290g
· T-REX 600EFL PRO Kits Set X1
· Aluminum Tail Boom X1
· 600 3G Carbon fiber blades X1
· 600MX Brushless Motor(510KV) X1
· DS610 Digital servoX3
· DS650 Digital servo X1
· 3GX Flybarless System X1

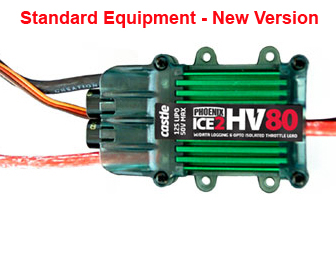

· Castle ICE HV 80 Brushless ESC X1
· 6A External BEC w/ 5.1V Two-way Step-down voltage regulator X1
Radio transmitter and electronic equipment required for assembly:
· Transmitter(7-channel or more, helicopter system)
· Receiver(7-channel or more)
· 6S Li-Po 2600 ~ 5200mAh X2 (3300mAh suggestion)
· Dial Pitch Gauge
